Diesel SCR System Fault Code: 2026 Troubleshooting Steps
A diesel SCR system fault code doesn't just light up the dash — it starts a countdown to a forced derate, and most drivers don't know whether they're looking at a $40 DEF fill or a $1,500 sensor job until someone reads the actual code.
- SPN 3226, SPN 3216, and SPN 4364 point to different failures — reductant temp, NOx sensor, and DEF quality respectively.
- Check DEF concentration with a refractometer before replacing any sensor — bad DEF causes more diesel scr system fault code events than bad hardware.
- A failing ECM can throw phantom SCR codes that survive sensor swaps — if the code returns, the ECM is the next suspect.
- Detroit Diesel, Cummins, and Volvo SCR systems follow the same diagnostic order even though the SPN numbers differ by platform.
- An active, uncleared SCR code triggers a forced derate in 2026, usually capping road speed within 50 to 100 miles.
Why this matters
SCR fault codes are the most common reason a Class 8 truck sits in a bay instead of on a route in 2026. The system depends on three things working together — clean DEF, an accurate NOx sensor reading, and an ECM that trusts what the sensor is telling it. When any one of those drifts, the ECM sets a code and starts a derate timer, and by the time the driver notices, the truck is already crawling at reduced power.
Most shops waste the first hour on the wrong component because they chase the dash light instead of the actual SPN/FMI code. A code reader that shows "SCR system fault" on the display without the underlying parameter ID tells you almost nothing. Pull the real code before you touch a wrench, and you'll cut diagnostic time by half on most Detroit, Cummins, and Volvo platforms.
Diesel Engine King's parts catalog gets pulled into a lot of these repairs because a chronic SCR code frequently traces back to a tired ECM rather than a bad sensor — and once you know which one, the fix is a straight swap, not a guessing game. If your fault code diagnosis keeps circling back to inconsistent sensor data with no wiring fault found, diagnose Detroit Diesel ECM fault codes before you order a new NOx sensor.
What you'll need
- A diesel-capable scan tool that reads J1939 SPN/FMI codes, not just generic OBD-II
- A refractometer or DEF quality tester (aim for 32.5% urea concentration)
- A digital multimeter for sensor wiring checks
- The engine-specific fault code chart for your platform (Detroit, Cummins, Volvo, PACCAR, Mack all number SCR codes differently)
- 30 to 90 minutes for a basic diagnosis, longer if a sensor or ECM swap is needed
- Shop access or a lift if you're inspecting the dosing module or catalyst housing
The steps

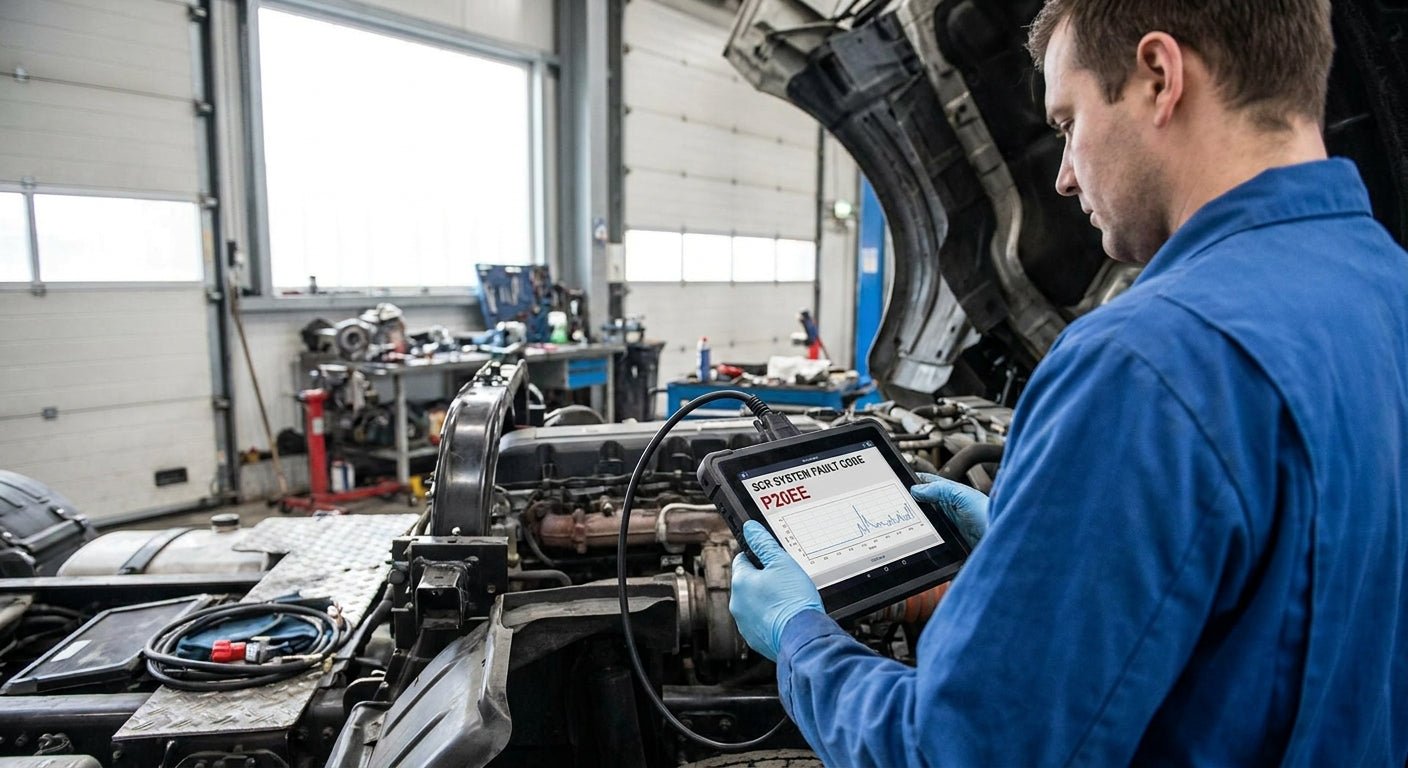

1. Pull the exact SPN/FMI code, not the dash symbol
The dash light tells you the system detected a problem — it doesn't tell you what failed. Connect the scan tool and record the full SPN (Suspect Parameter Number) and FMI (Failure Mode Identifier). SPN 3226 points to reductant temperature, SPN 3216 usually flags a NOx sensor circuit, and SPN 4364 flags DEF quality below the 32.5% threshold. Writing down the wrong code number sends you shopping for the wrong part, and that's the single most expensive mistake in SCR diagnostics.
Common mistake: clearing the code before recording it. Once cleared, you lose the freeze frame data that tells you engine load, coolant temp, and DEF level at the moment the fault set.
2. Test the DEF quality before touching any sensor
Draw a sample from the DEF tank and run it through the refractometer. A correct reading sits at 32.5% urea concentration; anything below 30% or above 35% will trigger quality-related SCR codes even when every sensor and injector is functioning. Contaminated or diluted DEF is responsible for a large share of SCR faults on trucks that sat idle over winter or got topped off from an unsealed jug.
Expected outcome: a clean reading rules out the tank entirely and moves you straight to sensor and wiring checks.
3. Inspect the NOx sensor wiring and connectors
With the DEF cleared as a cause, check the upstream and downstream NOx sensors for corrosion, loose pins, or chafed wiring near the exhaust heat shields. A resistance reading well outside the manufacturer spec on the multimeter confirms a sensor-side fault rather than a software fault in the ECM. Heat cycling breaks these connectors faster than almost any other wiring point on the truck.
Common mistake: replacing the sensor without checking the connector pins first — a corroded pin reproduces the exact same fault code on the brand-new sensor within days.
4. Check for exhaust leaks around the SCR catalyst
An exhaust leak upstream of the catalyst throws off the NOx reading even with a perfectly good sensor, because the ECM compares inlet and outlet NOx levels to calculate catalyst efficiency. A leak skews that math and sets an efficiency fault that looks identical to a failing catalyst on the scan tool. Visually inspect gaskets and clamps at every flange between the turbo outlet and the SCR housing.
5. Verify dosing module and injector operation
Command a manual DEF dose through the scan tool if your platform supports it, and watch for a clogged injector tip or a dosing module that won't cycle. A clogged injector produces intermittent codes that clear on their own after a regen, which makes them easy to dismiss until they become permanent. Crystallized urea buildup at the injector tip is the usual cause on trucks that ran low-quality DEF for extended periods.
6. Cross-reference the ECM fault log for repeat patterns
Pull the full fault history, not just the active code. If the same SPN has logged three or more times in the last 30 days despite parts being replaced, the problem is almost certainly upstream in the ECM's sensor interpretation logic rather than in the hardware itself. That pattern is the strongest signal to diagnose a failing diesel engine ECM instead of ordering another sensor.
Expected outcome: a clear log with a single isolated event usually means the fix already worked; a repeating log means keep digging.
7. Clear the code and run a full regen or road test
After any repair, clear the code and run a completed regeneration cycle or a road test long enough to hit normal operating temperature — usually 20 to 30 minutes at highway speed. A code that stays clear through a full heat cycle confirms the fix. A code that returns within the first few miles means you fixed a symptom, not the cause.
8. Escalate to component replacement if the pattern holds
If DEF quality, wiring, and dosing all check out clean and the code keeps returning, the ECM itself is the remaining variable. Bench-tested, good-used ECMs are a common route here because a new OEM unit on a truck that's already several years old rarely makes financial sense against a used remanufactured module priced hundreds less.
Troubleshooting
- Code clears but returns within a day — check for a slow DEF leak at the tank sender or dosing line; a small leak drops concentration gradually and re-triggers SPN 4364.
- NOx sensor reads erratic values with clean wiring — the sensor element itself has likely failed from heat exposure; replace rather than continuing to chase wiring.
- SCR code appears alongside an active EGR fault — check EGR valves for Detroit Diesel engines first, since a stuck EGR valve changes exhaust NOx levels enough to trip the SCR catalyst efficiency monitor.
- Truck derates immediately after a DEF fill-up — verify the DEF wasn't contaminated with diesel or water at the pump; a bad batch produces an instant quality fault.
- Fault only shows at highway speed, never at idle — this points to a marginal wiring connection that only opens under vibration; wiggle-test the harness at operating RPM.
- Code persists after both sensor and ECM replacement — check the catalyst substrate itself for physical damage or contamination; a poisoned catalyst won't clear with electronics fixes.
Tools and resources
Keep a J1939-capable scan tool, a refractometer, and your platform's fault code chart in the truck at all times if you run your own maintenance. For deeper wiring and sensor work, review how to replace a diesel engine EGR valve since EGR and SCR faults frequently show up together on the same fault log.
A bench-tested ECM buys you a same-day fix instead of a multi-day wait on a new OEM unit, and Diesel Engine King stocks good-used, run-tested control modules for Detroit, Cummins, and Paccar platforms shipped nationwide.
“If the SCR code survives a DEF fill, a sensor swap, and a full regen cycle, the ECM is lying to itself — not the sensor.”
What to do next
Once you've confirmed the ECM is the root cause rather than a symptom of bad DEF or a failed sensor, don't reset and reinstall the same unit hoping the fault clears itself — a control module that's already misreading NOx data once will do it again. Work through the full diagnostic sequence in how to diagnose a failing diesel engine ECM before ordering a replacement, so you're not swapping a working module for another marginal one.
FAQ
What does a diesel scr system fault code actually mean?
A diesel SCR system fault code means the ECM detected a problem with DEF quality, a NOx sensor reading, or catalyst efficiency in the selective catalytic reduction system. The exact SPN and FMI numbers tell you which of the three is failing, and misreading the code is the most common diagnostic mistake in 2026.
Will a diesel scr system fault code cause a derate?
Yes, an active and uncleared SCR fault triggers a forced derate in 2026, typically limiting road speed within 50 to 100 miles of the code setting. The exact mileage window varies by manufacturer and how many prior warnings the driver ignored.
Can bad DEF cause an SCR fault code?
Bad DEF is one of the most common causes of SCR fault codes, especially SPN 4364 for quality below the 32.5% urea threshold. Contaminated, diluted, or expired DEF produces the same symptoms as a failing sensor, which is why testing DEF quality comes before replacing any hardware.
How do I know if it's the NOx sensor or the ECM?
If a new NOx sensor throws the identical fault code within days, the ECM is misinterpreting good sensor data rather than the sensor itself being bad. A repeating pattern in the ECM fault log after a confirmed hardware fix is the clearest sign the control module needs replacement.
Is it safe to keep driving with an active SCR fault code?
Driving with an active SCR fault code is safe in the short term but the ECM will impose a derate on a countdown timer, so the truck loses power regardless of driver intervention. Address the code before the derate window closes to avoid getting stranded mid-route.
How much does it cost to fix a diesel SCR system fault code?
A DEF quality fix costs the price of a fresh DEF fill, while a NOx sensor replacement typically runs a few hundred dollars in parts plus labor. A confirmed ECM replacement is the largest cost in the chain, and a good-used, bench-tested module runs meaningfully less than a new OEM unit.
Do Detroit, Cummins, and Volvo use the same SCR fault codes?
No, Detroit Diesel, Cummins, and Volvo assign different SPN numbers to the same underlying failures even though the diagnostic sequence — DEF quality, sensor wiring, catalyst efficiency, ECM logic — is identical across platforms. Always pull the platform-specific fault code chart before diagnosing.
Can an EGR problem trigger an SCR fault code?
Yes, a stuck or leaking EGR valve changes exhaust NOx levels enough to trip the SCR catalyst efficiency monitor even when the SCR system itself is functioning correctly. Check EGR operation whenever an SCR efficiency code appears alongside an active EGR fault.
One last thing
Most trucks that come in with a repeat SCR fault code have already had a sensor replaced once — and it didn't fix anything, because nobody checked the DEF quality first. Run the refractometer before you order any part in 2026; it takes two minutes and rules out the cheapest, most common cause before you spend money on the expensive one.
