Cummins ISM Oil Pressure Diagnosis 2026: Step-by-Step Fix
A Cummins ISM throwing a low oil pressure warning is not always a bad engine — it's often a bad sensor, a clogged pickup tube, or a worn pump that still has a few thousand miles left in it before failure. This guide walks through the exact sequence a shop uses to separate a $40 sensor from a $9,000 in-frame rebuild.
- A Cummins ISM oil pressure fault most often traces to the sensor, not the pump — check SPN 100/FMI codes first.
- Normal ISM oil pressure at idle is 10 psi minimum; at rated speed it should read 40-60 psi in 2026 service specs.
- If pressure drops below 10 psi at idle after a sensor swap, pull the pan before you touch the engine.
- Diesel Engine King stocks used Cummins ISM engines and Cummins parts if the pump or bearings are shot beyond repair.
Why this matters
An ISM running low on oil pressure for even a short stretch scores the main and rod bearings fast, and a bearing failure on an ISM turns into a crank job, not a gasket job. Catching the fault at the sensor or pickup-tube stage in 2026 costs a few hundred dollars in parts and labor. Catching it after the bearings spin costs a full teardown, and that's the gap between a Tuesday repair and a two-week engine swap.
Most ISM low-pressure codes are SPN 100 paired with an FMI 1 (low), FMI 3 (short to power), or FMI 4 (short to ground). The FMI tells you almost everything before you crack a wrench. FMI 3 or 4 point at wiring or the sensor itself. FMI 1 means the ECM is reading actual low pressure, and that's the one that gets your attention.
Diesel Engine King sees this exact fault pattern across fleet ISM engines pulled in for rebuild, and the split holds up: sensor and wiring issues outnumber true mechanical pump failures by a wide margin on trucks under 400,000 miles. Before you assume the worst, work the diagnostic order below.
What you'll need
- OBD/J1939 code reader capable of pulling Cummins SPN/FMI codes (INSITE or a generic heavy-duty scanner)
- Mechanical oil pressure gauge with a T-fitting adapter — don't trust the dash gauge alone
- Digital multimeter for sensor and wiring checks
- New oil pressure sensor (Cummins ISM uses a common 3-wire sender)
- Fresh oil and filter, in case a change is part of the fix
- Service manual torque specs for the sensor boss and, if needed, the pump cover
- A lift or pit if you're pulling the pan — access to a used Cummins ISM engine inventory if the diagnosis lands on a worn block
The steps
1. Pull the fault code and read the FMI, not just the SPN
The SPN tells you what parameter is off — oil pressure, in this case, under SPN 100. The FMI tells you why the ECM thinks it's off. An FMI 3 or 4 almost always means an electrical fault, not an actual pressure drop. An FMI 1 means the ECM sees real low pressure and you need a mechanical gauge next.
Common mistake: clearing the code and driving off without checking the FMI. Codes clear on their own and come right back at the next cold start.
2. Install a mechanical gauge and compare against the dash reading

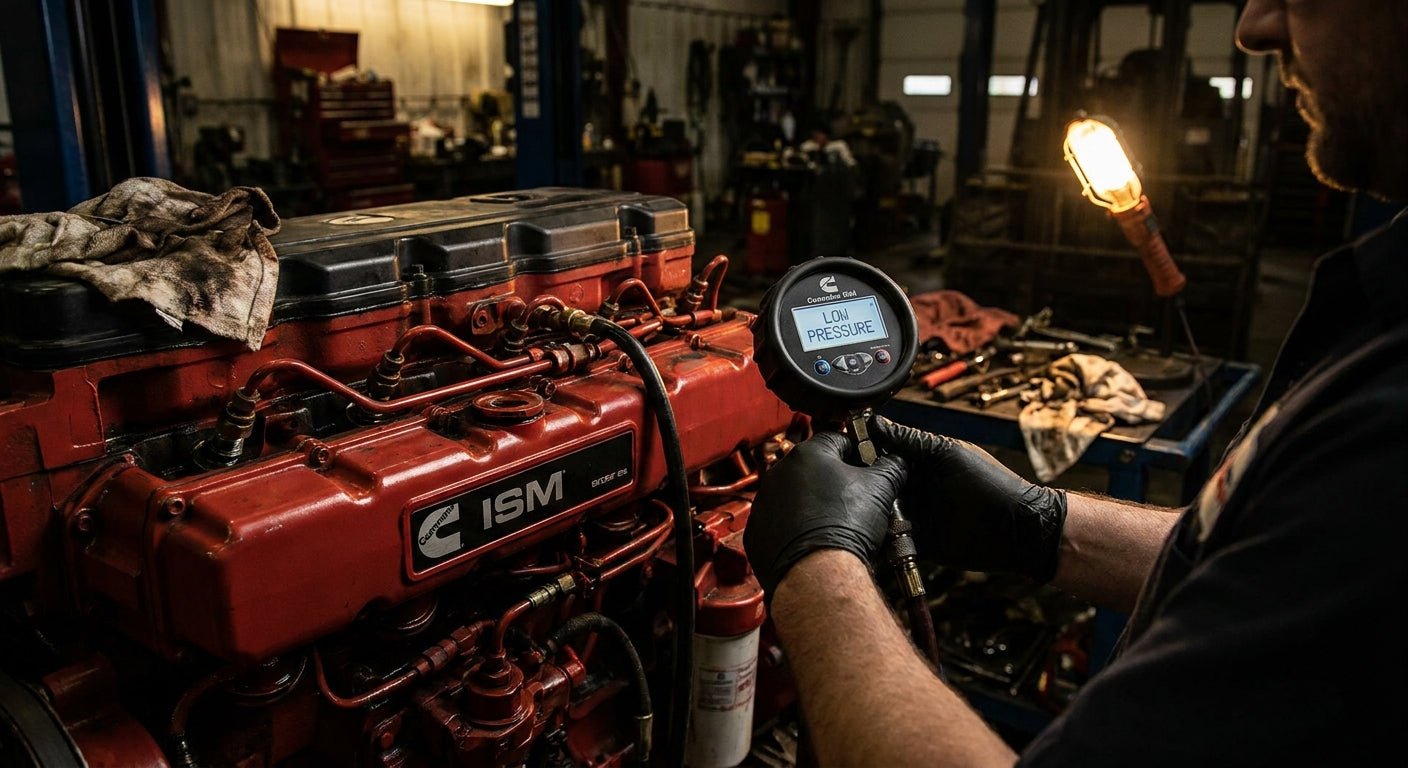

Tap into the oil pressure sensor port with a T-fitting and run a mechanical gauge alongside the factory sensor. Idle the engine and check readings at idle, then bring it to rated speed under light load. Cummins ISM specs call for a minimum of 10 psi at idle and 40-60 psi at 2100 RPM in 2026 service documentation.
If the mechanical gauge reads normal but the dash shows low or erratic, you've isolated the fault to the sensor or its wiring — not the engine. Buy yourself the sensor swap in step 3 and skip the teardown.
3. Check the sensor wiring before replacing the sensor
Backed-out or corroded connectors cause more false low-pressure codes than failed senders. With the key on and engine off, check for battery voltage at the sensor connector and check ground continuity. A voltage drop over 0.5V on the signal wire under load points to chafed wiring, not a bad part.
Common mistake: replacing the sensor first, seeing the code disappear temporarily, and missing a wiring short that kills the new sensor in a week.
4. Swap the sensor if wiring checks clean
The ISM oil pressure sender threads into the block near the oil filter housing. Torque to the manufacturer spec listed in the service manual — overtightening cracks the sensor boss. Clear the code, run the engine to operating temperature, and confirm the dash and mechanical gauge now agree within 2-3 psi.
If you're unsure which sensor part number matches your block, identify the CPL number stamped on the engine data plate before ordering — ISM variants across model years use different sender threads.
5. Inspect oil level, viscosity, and filter condition
Low oil pressure at idle with a clean sensor and correct wiring often traces to something simpler: oil level below the dipstick minimum, the wrong viscosity for ambient temperature, or a clogged filter starving the pump inlet. Pull the dipstick cold and hot — a reading that drops significantly hot points at a leak, not a sensor.
Common mistake: topping off oil without finding the leak. If the level keeps dropping between checks, you're chasing a symptom, not the cause.
6. Check the oil pickup tube and pump inlet screen
If pressure stays low with correct oil level and a confirmed-good sensor, the pickup tube screen may be partially clogged with sludge or metal debris — a warning sign of internal wear upstream. This requires pulling the pan. A screen packed with fine metal particles means bearing wear has already started, and that changes the conversation from repair to rebuild or replace.
7. Pressure-test the oil pump if the screen is clean
With the pan off and the screen clear, a pump that still reads low on a shop pressure test has worn gears or excessive bore clearance. On an ISM with over 500,000 miles, this is a normal wear pattern, not a defect — the pump is a wear item like a clutch. Verdict: Wait on the full rebuild decision until you've run a compression check and inspected the bearings while the pan is off, since a worn pump often travels with worn bearings on higher-mileage units.
If fault codes trace to the diesel engine ECM instead of the mechanical system, rule that out before condemning the pump — a misreporting ECM can mimic a mechanical pressure drop.
Troubleshooting
- Code clears but returns within a day — wiring intermittent, not the sensor. Check the harness routing near the turbo for heat damage.
- Mechanical gauge reads fine, dash still shows low — dash sensor or gauge cluster fault, not an engine issue. Skip the teardown entirely.
- Pressure drops only when hot — thinning oil viscosity or worn bearing clearance letting oil bypass. Check the oil grade against ambient temperature specs first.
- Pressure fine at idle, drops at rated speed — pump wear or a partially restricted screen. Pull the pan.
- Oil level drops fast between changes with no visible leak — check for a cracked oil cooler letting oil into the coolant system, a known ISM failure point on higher-mileage units.
- New sensor installed, code still active — confirm the correct sensor thread and pressure range for your specific CPL number; a mismatched aftermarket sensor reads wrong across the whole range.
Tools and resources
- Cummins INSITE or equivalent heavy-duty scan tool for SPN/FMI codes
- Mechanical oil pressure gauge kit with T-fitting
- Digital multimeter for wiring diagnostics
- Service manual with torque specs for your ISM's CPL number
- Cummins engine parts sourced for fleet maintenance when the diagnosis points to a sensor, pump, or gasket replacement rather than a full engine swap
What to do next
If the pan comes off and bearings show scoring or the pump's beyond a rebuild-worthy tolerance, weigh a full engine swap against a rebuild before you sink more labor into a block that's near the end of its service life. Diesel Engine King carries used and remanufactured Cummins engines for exactly this scenario, and knowing how to spec a replacement matters as much as diagnosing the original fault. Review how to buy remanufactured Cummins engine parts online before you commit to either path.
FAQ
What is normal oil pressure for a Cummins ISM?
A Cummins ISM should read a minimum of 10 psi at idle and 40-60 psi at rated speed (2100 RPM) under load, per 2026 Cummins service specs. Readings below these thresholds trigger an SPN 100 fault code.
Is a Cummins ISM oil pressure code always a bad pump?
No — most SPN 100 codes with FMI 3 or 4 trace to a bad sensor or wiring fault, not the pump. A true mechanical failure shows FMI 1 and confirms low pressure on a mechanical gauge, not just the dash.
How much does it cost to fix a Cummins ISM oil pressure sensor?
A Cummins ISM oil pressure sensor and labor typically runs a few hundred dollars in 2026, far less than a pump replacement or engine rebuild. Confirm the correct sensor for your CPL number before ordering.
Can low oil pressure damage a Cummins ISM permanently?
Yes — running an ISM below 10 psi at idle for even a short period can score main and rod bearings. A scored bearing on an ISM usually means an in-frame rebuild, not a simple part swap.
Should I trust the dash oil pressure gauge on a Cummins ISM?
Not without confirmation. Always cross-check the dash reading against a mechanical gauge tapped into the sensor port before deciding whether the issue is the engine or the electronics.
What fault code shows Cummins ISM low oil pressure?
Cummins ISM low oil pressure shows as SPN 100 with an FMI code appended — FMI 1 for a real low reading, FMI 3 or 4 for wiring or sensor faults. Pull the FMI before assuming a mechanical failure.
How often should oil pressure be checked on a Cummins ISM?
Check oil pressure at every oil change and any time a dash warning appears. Waiting until a warning light forces the issue risks bearing damage that a routine check would have caught early.
One last thing
The detail most shops miss: an ISM oil cooler crack lets coolant and oil cross-contaminate long before pressure drops enough to trip a code, so an ISM that's burning oil with no visible leak and no active fault deserves a cooler inspection anyway — not just a pressure check. Catching that before it hits the bearings saves the whole engine.
