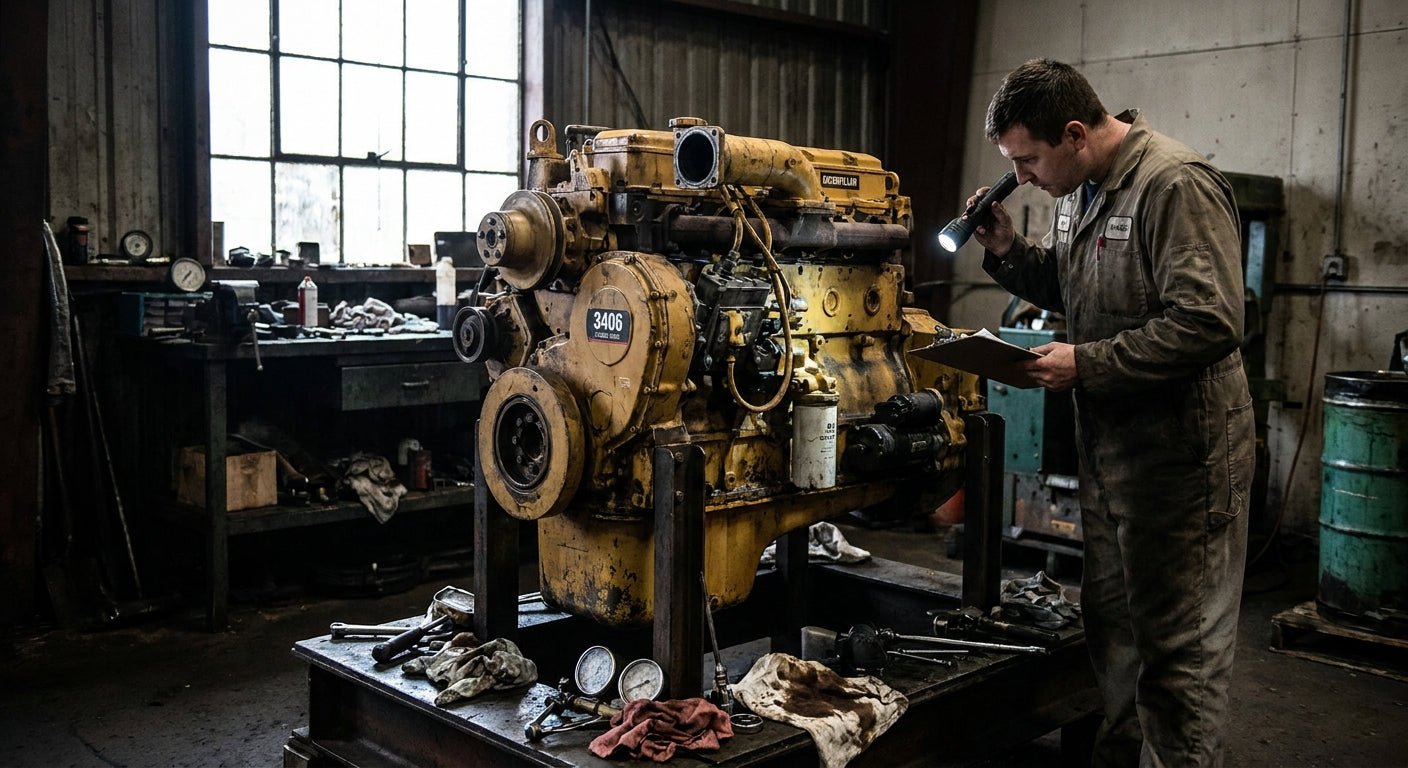

Cat 3406 Engine Inspection Checklist for 2026 Buyers
Buying a used Cat 3406 without a proper inspection is how a $9,000 engine turns into a $20,000 rebuild six months later. This guide walks through the checkpoints that separate a solid core from a parts-yard reject, whether you're buying off a truck, a stripped chassis, or a listing that only shows a serial number tag.
- A proper cat 3406 engine inspection checks compression, oil analysis, and injector timing before cash changes hands in 2026.
- Cylinder compression under 350 psi on a 3406E signals ring or liner wear worth walking away from.
- Coolant in the oil or metal in the filter are the two fastest disqualifiers on any used Cat 3406.
- A run-tested Cat 3406 with logged hours and a clean oil analysis is the safe buy; a ran-when-parked unit is a gamble.
Why this matters
The Cat 3406 ran in Class 8 trucks from the mid-1980s through the early 2000s across three main variants — the 3406B, 3406C, and 3406E — and specs shift enough between them that a generic once-over misses real problems. A 3406E rated at 550 HP has different injector and turbo tolerances than a 3406B rated at 350 HP, and mixing up parts or diagnostics between generations wastes time on the shop floor.
Most used 3406 engines on the market in 2026 come out of trucks retired for reasons that have nothing to do with the engine — a wrecked cab, a failed transmission, an owner-operator upgrading trucks. That's the good scenario. The bad scenario is an engine pulled because it was already burning oil or throwing metal, then cleaned up and listed with no mention of why it came out. Your inspection is what tells the difference.
What you'll need
- Compression tester rated for diesel (300+ psi range)
- Oil sample kit or access to a lab that does used-oil analysis
- Borescope or inspection camera for cylinder walls and injector bores
- Multimeter for wiring and sensor checks
- Service manual or CPL sheet matching the specific 3406 variant
- A magnetic drain plug check and oil filter cutter
- If the ECM is suspect, a replacement unit on hand speeds up bench testing — a Caterpillar C7 ACERT 70-Pin ECM or similar bench-tested module lets you isolate whether a fault code is the engine or the controller
Budget two to three hours for a thorough inspection. Rushing it is how bad engines get bought.
The steps
1. Pull the serial number and cross-check the CPL
Every Cat 3406 has a serial number and Configuration Part List (CPL) number stamped on the engine block, usually on the left side near the injection pump. This tells you the exact build spec, horsepower rating, and factory options — critical because sellers often guess at horsepower or quote it from the truck's old spec plate instead of the engine itself.
Cross-reference the CPL against Caterpillar's published specs before you agree on price. A mismatch between what's advertised and what's stamped on the block is a red flag on its own, and it's the first thing a mechanic will catch anyway.
Common mistake: trusting a seller's stated horsepower without checking the CPL tag. A 3406E can range from 365 HP to 550 HP depending on build — that's a real difference in resale value.
2. Check oil condition and the dipstick reading
Pull the dipstick and look at color, smell, and level. Oil that smells like fuel means injector or ring issues pushing diesel past the pistons. Milky or gray oil means coolant intrusion — almost always a head gasket or liner seal problem on a 3406, and one of the more expensive fixes on this platform.
If the seller allows it, pull an oil sample and send it for analysis. A lab result showing high silicon, iron, or copper levels tells you about internal wear before you ever crank the engine. Expect turnaround in 24-48 hours from most diesel oil labs, so plan this early if you're inspecting remotely.
Common mistake: skipping the sample because the oil looks fine. Visual inspection catches maybe half of what's actually wearing inside the engine.
3. Run a compression test on all six cylinders
Pull the injectors — or use the compression-check ports if the engine has them — and test all six cylinders. A healthy 3406E should read in the 350-450 psi range depending on the specific build; variance of more than 15% between the highest and lowest cylinder points to a ring, valve, or liner problem worth investigating further.
Write down every number as you go. A single low cylinder might mean a stuck valve you can fix cheap; three or four low cylinders means a top-end rebuild you did not budget for.
Common mistake: testing only two or three cylinders and assuming the rest match. Uneven wear is common on high-mileage 3406s.
4. Inspect the turbo and exhaust manifold
Grab the turbo shaft by hand through the compressor housing and check for play — you want firm resistance with no more than a slight amount of axial movement. Excessive shaft play means bearing wear, and on a 3406 that often means oil has been getting past the seals and into the intake for a while.
Look at the exhaust manifold and turbo housing for cracks, especially near the mounting flanges. These engines run hot under load, and thermal cracking is common on units that saw hard highway miles without regular cooling system service.
Common mistake: spinning the turbo by hand and calling it good without checking for lateral play, which is the more telling sign of bearing wear.
5. Check the injectors for timing and leakage
The 3406B and early 3406C use a mechanical unit injector system; later 3406E variants moved to electronic unit injectors controlled by the ECM. Know which system you're looking at before you start, because the failure points are different.
On mechanical injectors, check for consistent spray pattern and no external fuel leakage at the injector body. On electronic injectors, a bench test or scan tool read of injector trim codes tells you if one cylinder is running lean or rich relative to the others — a sign of a failing injector before it fully quits.
Common mistake: assuming rough idle is a timing issue when it's actually one bad injector. A cylinder cutout test isolates which injector is the problem in minutes.
6. Verify ECM function on 3406E units
Electronic 3406E engines rely on the ECM to manage fuel timing and injection pressure, and a failing ECM produces symptoms that look exactly like engine wear — hard starts, power loss under load, erratic idle. Before you condemn the mechanical internals, connect a scan tool and pull stored fault codes.
If the ECM throws communication errors or won't hold a stable connection, that's a separate repair path from an engine rebuild and a much cheaper one. Bench-testing a spare ECM against the harness is the fastest way to rule this in or out. For a broader walkthrough on isolating this kind of fault, the guide on how to diagnose a failing diesel engine ECM covers the diagnostic sequence step by step.
Common mistake: replacing injectors or doing top-end work to fix a symptom that was actually an ECM fault code the whole time.
7. Check for oil leaks at known weak points
The 3406 has a handful of common leak points: the rear main seal, the front timing cover, and the oil pan gasket. Wipe these areas down, run the engine if possible, and recheck after ten to fifteen minutes for fresh seepage.
A small amount of weeping at the rear main on a high-mileage engine isn't automatically disqualifying, but active dripping means a gasket or seal job you should factor into your offer.
Common mistake: inspecting a cold, static engine and missing leaks that only show up under running oil pressure.
Troubleshooting
- Compression reads low across all six cylinders: Suspect worn rings or a general top-end wear issue rather than a single-cylinder problem — this usually means a full rebuild, not a spot repair.
- Oil analysis shows high iron with normal copper: Points to cylinder liner or ring wear rather than bearing wear, since copper is the marker for bearing material.
- Engine cranks but won't start, no visible mechanical issue: Check ECM fault codes first on 3406E units before assuming fuel or compression problems.
- Turbo whines under load: Usually bearing wear before it's a full failure — budget for a turbo rebuild or replacement, not just the engine price.
- White smoke on startup that clears after a minute: Common with cold-weather condensation; white smoke that persists past idle warm-up points to coolant burning, which ties back to the head gasket check in step two.
- Seller won't allow a compression test or oil sample: Walk away. A seller confident in the engine's condition has no reason to block basic diagnostics.
Tools and resources
- Compression tester and borescope for internal inspection
- Oil analysis kit or lab service with 24-48 hour turnaround
- Scan tool compatible with Cat ECM fault codes for 3406E units
- CPL and serial number reference sheet for your specific engine variant
- A tested replacement ECM on hand if you suspect electronic faults rather than mechanical ones
- For the broader purchase process beyond the engine itself, the guide on how to buy a used diesel engine online covers seller vetting, shipping, and warranty questions worth asking before you wire funds
What to do next
Once the 3406 passes inspection, the next decision is sourcing — buying direct from a seller versus buying through a dealer that run-tests and certifies before listing. Nationwide Diesel Engine Sales lists certified, run-tested used diesel engines with documented condition, which removes most of the guesswork covered in this guide. If your inspection turns up turbo wear specifically, the maintenance breakdown in how to maintain a Cat C15 turbocharger applies closely enough to the 3406's turbo system to be useful before you commit to a rebuild.
FAQ
What compression should a used Cat 3406 read?
A healthy 3406E should read 350-450 psi across all six cylinders in 2026 inspections, with less than 15% variance between the highest and lowest reading. Anything below that range or with wide cylinder-to-cylinder variance points to ring or liner wear.
How do I tell a 3406B from a 3406E?
Check the CPL and serial number stamped on the engine block against Caterpillar's build specs. The 3406E uses electronic unit injectors and an ECM, while the 3406B and early 3406C use mechanical injection with no electronic controls.
Is a Cat 3406 with milky oil worth buying?
Milky or gray oil signals coolant intrusion, usually from a head gasket or liner seal failure, and it's one of the more expensive repairs on this platform. Skip it unless the price already reflects a full head or liner job.
Can a bad ECM look like a mechanical engine problem on a 3406E?
Yes. Hard starts, power loss, and rough idle can all come from ECM faults rather than internal wear. Pull fault codes with a scan tool before assuming the engine itself is bad.
How much does a used Cat 3406 cost in 2026?
Pricing varies by hours, condition, and whether the engine is run-tested versus sold as-is, but a certified, run-tested unit commands a premium over an untested core pulled from a salvage chassis.
What's the biggest red flag when inspecting a used 3406?
A seller who won't allow a compression test or oil sample before purchase. Legitimate sellers with a healthy engine have no reason to block basic diagnostics.
Do all Cat 3406 engines use the same injectors?
No. Mechanical 3406B and 3406C models use unit injectors without electronic control, while the 3406E uses electronic unit injectors managed by the ECM. Confirm the variant before ordering parts.
One last thing
The detail most buyers skip: check the oil filter for metal shavings with a magnet before you even start the compression test. A filter that's clean under a magnet tells you more in thirty seconds than most of the rest of the inspection combined, and it costs nothing but a filter cutter and five minutes.
