Diesel Engine Coolant Leak Diagnosis: 2026 Step-by-Step
A diesel engine coolant leak diagnosis comes down to one question: is coolant leaving the system externally, or is it crossing into the oil or the combustion chamber? External leaks show up as puddles, stains, and weeping hose clamps. Internal leaks hide inside the engine and show up as white exhaust smoke, a sweet smell at the tailpipe, or a milky film on the oil dipstick — and they cost far more to fix.
- White smoke, a sweet smell, or a milky dipstick point to an internal leak, not a hose or water pump.
- A cooling system pressure test isolates external leaks in about 20 minutes on most Class 8 diesel engines.
- Head gasket failure and EGR cooler cracks are the most common internal coolant leak sources in 2026.
- Coolant loss with no visible puddle almost always means the engine is burning coolant or pushing it into the oil pan.
- When the repair outgrows the budget, a used long block is often cheaper than a second in-frame overhaul.
Why this matters
A misdiagnosed coolant leak turns into an overheated head, a cracked block, or a spun bearing — repairs that cost multiples of the original fix. Techs lose more hours chasing a phantom external leak on an engine that is actually pushing coolant into the crankcase than on any other cooling-system complaint.
The two failure paths point to completely different parts bins. External leaks fix with hoses, clamps, a water pump, or a radiator. Internal leaks point to a head gasket, a cracked cylinder head, or a failed EGR cooler — parts that mean pulling the head or, on a high-mileage unit, replacing the engine. Diesel Engine King stocks both ends of that spectrum: cooling components for the small stuff, used diesel engines for when the leak is a symptom of something bigger.
How do you diagnose a diesel engine coolant leak?
Work the system from the outside in. Most techs pop the radiator cap first and waste an hour. Start with the walk-around instead.
- Check coolant level cold, then check again after a 15-20 minute idle. Track how much you add and how fast it disappears.
- Look for external stains. Dried coolant leaves crusty pink or green residue at hose clamps, the water pump weep hole, radiator seams, and freeze plugs.

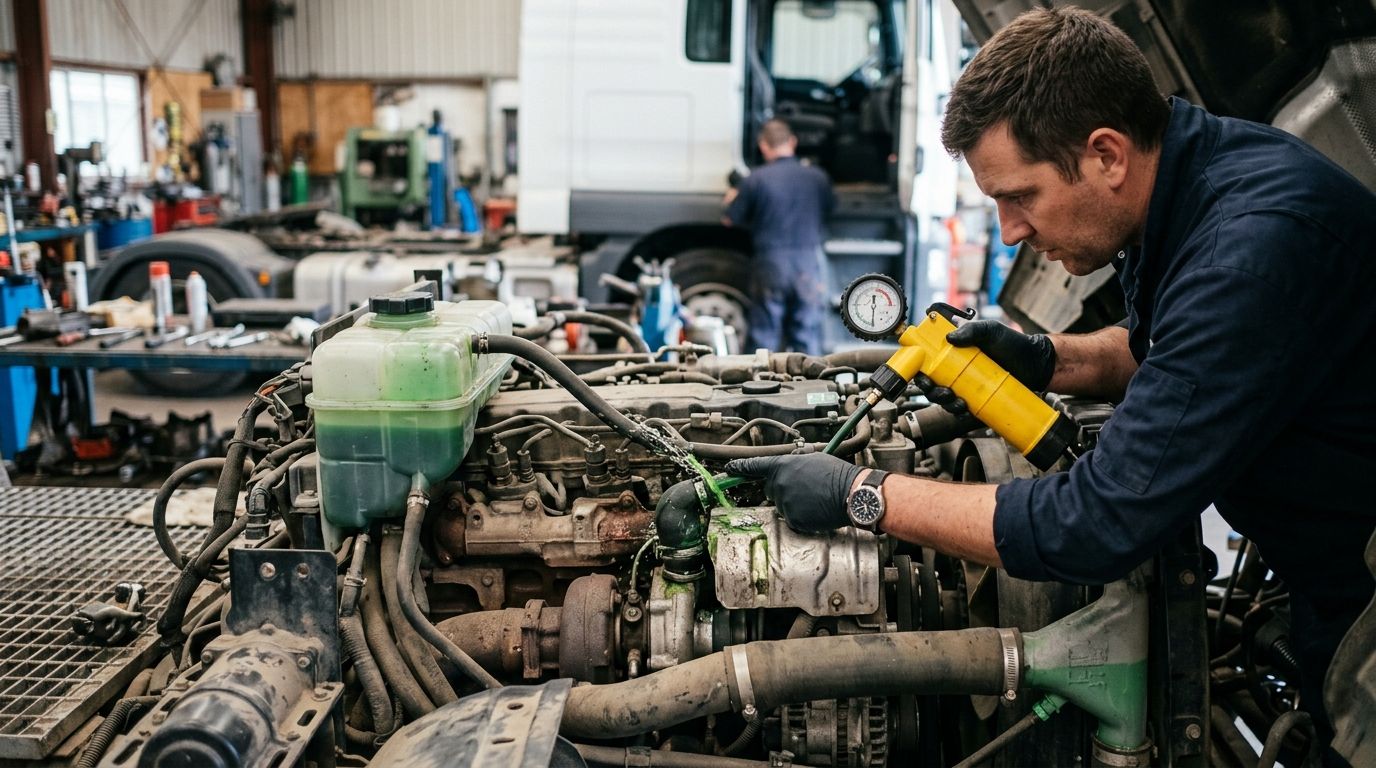

- Pressure test the cooling system with a hand pump tester at the radiator cap's rated pressure — most Class 8 diesel caps run 15-20 psi. Hold 10 minutes. Pressure drops with no puddle means the leak is internal.
- Pull the oil dipstick. A milky, mayonnaise-colored film means coolant is mixing with oil, usually through the oil cooler or a cracked liner.
- Watch the exhaust at cold start and under load. Sweet-smelling white smoke means coolant is burning in the combustion chamber.
- Run a combustion leak test with a chemical block-check kit on the radiator neck. A color change confirms combustion gas is entering the coolant through a head gasket or cracked head.
| Symptom | Most likely source | Test that confirms it |
|---|---|---|
| Puddle under truck, visible stain | Hose, water pump, radiator | Pressure test |
| Coolant drops, no puddle, white smoke | Head gasket or cracked head | Block test |
| Milky dipstick, no smoke | Oil cooler or liner | Oil sample plus pressure test |
| Coolant loss plus sweet smell at intake | EGR cooler crack | Pressure test with EGR isolated |
External coolant leaks: hoses, water pump, radiator
These are the leaks you can see and usually fix in an afternoon. A weeping water pump shaft seal, a split lower radiator hose, or a loose heater line accounts for most coolant complaints that come with a puddle.
Radiator core leaks and freeze plug corrosion show up more on engines past 500,000 miles, especially in fleets that skip coolant filter and additive service. Cooling system parts for heavy-duty diesel engines covers which components fail first by mileage band once the pressure test points here.
Verdict: an external leak that passes a clean block test is a same-day repair — Fix it now.
Internal coolant leaks: head gasket and EGR cooler
Internal leaks get missed because there is nothing under the truck to see. Coolant either burns in the cylinder or mixes with oil, and the truck just keeps needing a top-off every few days.
A failed head gasket lets combustion gas pressurize the cooling system — exactly what the block test catches. On Detroit DD15, Cummins ISX15, and Volvo D13 platforms, a cracked EGR cooler is just as common a culprit in 2026, because the cooler sits directly in the coolant loop.
- Head gasket failure: positive block test, coolant in oil, or bubbles rising in the radiator neck at idle.
- EGR cooler crack: coolant loss with a sweet smell in the intake, sometimes white smoke under acceleration.
- Cracked head or liner: steady coolant loss, no external stain, pressure test will not hold.
Verdict: a positive block test means head or cooler work. Stop topping off and driving — Repair before it overheats.
Oil cooler cross-contamination
Coolant and oil share a common wall inside the oil cooler on most heavy-duty diesels. A failed cooler gasket or cracked core lets the two mix without a drop hitting the ground. This leak hides longest: the surge tank looks normal, there is no exhaust smoke, and the coolant just migrates into the oil pan.
Check the dipstick for a foamy milk texture and check the oil fill cap for the same residue. An oily sheen floating on the coolant means the cooler is pushing oil into coolant instead — same root cause, opposite direction. Diesel engine oil coolers and oil pans for fleet trucks breaks down replacement parts by platform once the cooler is confirmed.
Verdict: confirmed cross-contamination means the cooler comes out immediately — diluted oil kills bearings. Repair.
“Coolant that disappears with no puddle is not evaporating. It is going into the oil or out the exhaust, and both answers cost more than a hose.”
When the leak points to a bigger repair
Electronics get blamed early in cooling complaints because overheat derates and coolant-level faults land on the dash before anyone opens the hood. Confirm the mechanical leak first, then verify the sensor and module side only if codes persist after the repair.
Why diesel engine coolant leaks vary
Not every diagnosis follows the same path. Five factors change what you are actually chasing:
- Mileage. Head gaskets and EGR coolers fail more often past 400,000-500,000 miles.
- Coolant maintenance history. Skipped filter and additive changes accelerate corrosion at hoses, freeze plugs, and radiator cores.
- Engine platform. EGR cooler design differs enough across Detroit, Cummins, and Volvo that failure points are not identical.
- Duty cycle. High-idle work — reefer, PTO, vocational — runs hotter cycles that age hoses and gaskets faster.
- Prior repair quality. A head gasket replaced without resurfacing the head is a common repeat failure inside a year.
- Coolant type mismatch. Mixing extended-life and conventional coolant breaks down the additive package and attacks seals.
Can a diesel engine run with a small coolant leak?
A diesel engine can run short-term with a small external leak, but it risks overheating the moment the level drops below the water pump inlet. Monitor coolant temperature every mile and get the pressure test done before the next long haul.
Does a blown head gasket always cause white smoke?
A blown head gasket does not always cause white smoke — smoke only appears once enough coolant reaches the combustion chamber to burn visibly. Plenty of head gasket failures only push combustion gas into the coolant, which a block test catches long before any smoke shows.
How much coolant loss is normal on a diesel engine?
Normal coolant loss on a healthy diesel engine is effectively zero between service intervals, so any measurable drop with no external leak found warrants a pressure test and a block test in 2026. A truck needing coolant weekly has a leak, not a normal consumption rate.
If the diagnosis lands on a cracked head, a spun liner, or an EGR cooler failure on a high-mileage unit, the repair bill often closes in on the cost of a replacement long block. How to install a long block diesel engine replacement covers that swap when the coolant leak turns out to be the tip of a bigger problem.
FAQ
What does a milky oil dipstick mean on a diesel engine?
A milky, mayonnaise-colored dipstick means coolant has mixed with engine oil, usually from a failed oil cooler gasket or cracked cooler core. Change the oil and confirm the source before running the engine again.
How do you know if a diesel engine coolant leak is internal or external?
An internal leak leaves no puddle but fails a pressure or block test, while an external leak leaves a visible stain at a hose, water pump, or radiator seam. Check the dipstick and exhaust first when there is no puddle.
What causes a diesel engine to lose coolant with no visible leak?
Coolant loss with no visible leak in 2026 is most often a head gasket failure, a cracked EGR cooler, or oil cooler cross-contamination sending coolant into the oil. A block test and a dipstick check narrow it down fast.
Is a water pump coolant leak expensive to fix?
A water pump leak is one of the cheaper cooling system repairs on a diesel engine because it is a bolt-on part with no head work involved. Labor time depends on the accessory drive layout more than the part itself.
Can an EGR cooler leak cause a diesel engine to overheat?
An EGR cooler leak can overheat a diesel engine because coolant escapes the closed loop with no external sign. Left alone, the level drops far enough to starve the water pump.
Does a coolant leak always mean a head gasket?
No. Hoses, water pumps, radiators, freeze plugs, and EGR coolers all leak coolant without touching the head. A block test plus a visual inspection rules the head in or out.
How long can you drive a diesel engine with a coolant leak?
It depends on leak rate and cause: a slow external weep can wait for a scheduled repair, but any leak tied to a positive block test means the truck stops now. Watch the temperature gauge on every mile in between.
What pressure should a diesel cooling system hold during a test?
Test to the radiator cap's rated pressure, typically 15-20 psi on Class 8 diesel engines, and hold it for 10 minutes. Any drop without a visible puddle points to an internal leak.
One last thing
The chemical block-check kit is the cheapest tool most shops skip, and it catches combustion gas in the coolant before smoke, before overheating, and before a head cracks further. Run it on any diesel engine that needs coolant added more than once a month, even when the pressure test holds clean. In 2026 that single test separates a hose job from an engine replacement faster than anything else on the bench.
