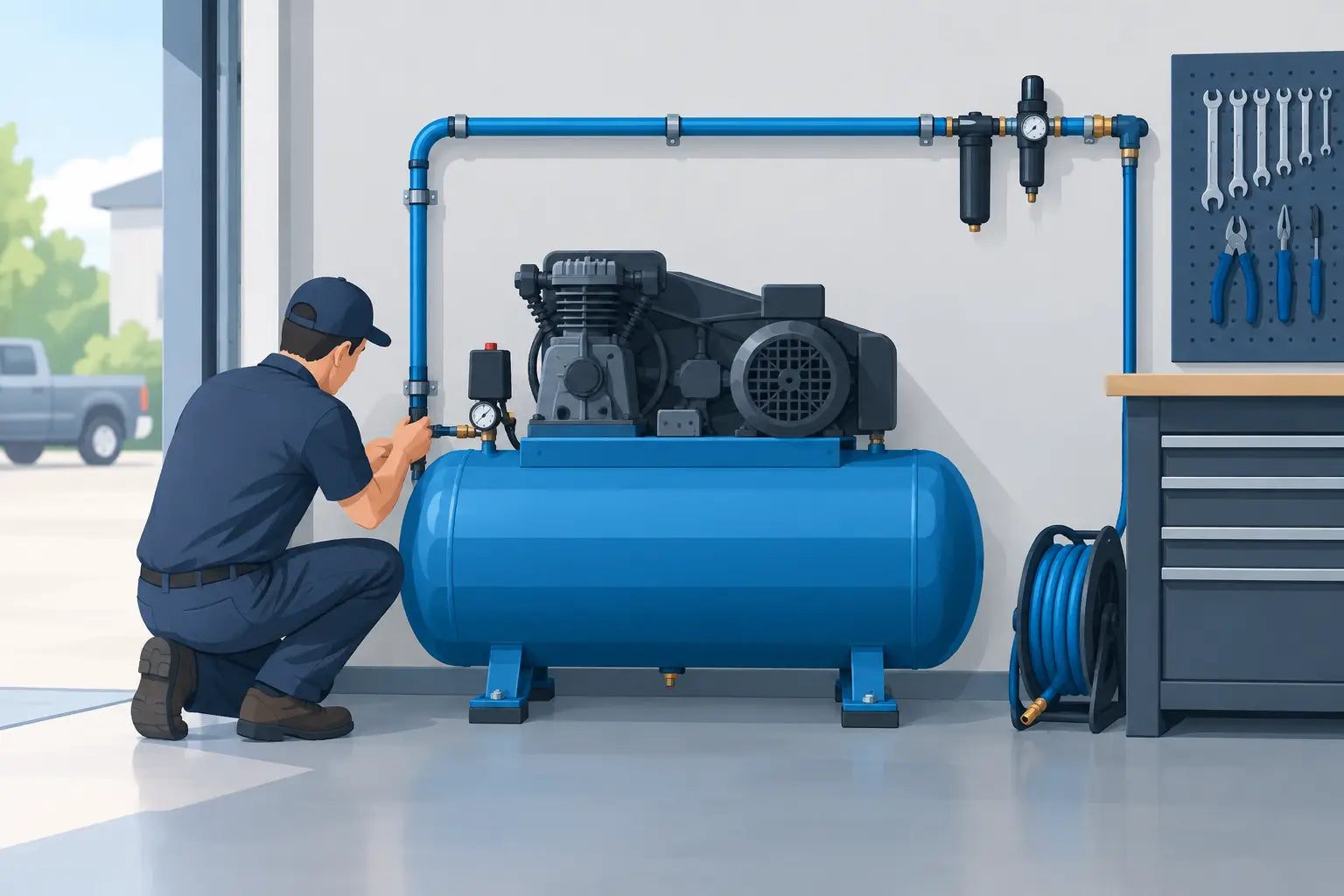

How to Install Air Compressor Systems in Your Shop
A compressor that cannot keep up with the shop costs more than the purchase price. It slows tire work, leaves water in air tools, and turns a simple repair into a wait. Knowing how to install air compressor equipment correctly means matching the system to real demand, protecting the unit from heat and moisture, and giving technicians air where they need it.
For a heavy-duty truck shop, this is not just about connecting a hose and plugging in a motor. Impacts, tire machines, blow guns, air jacks, paint work, and multiple bays can pull more air than a small compressor was built to deliver. Plan the installation around your busiest workday, not the slowest hour in the shop.
Start With Air Demand and Compressor Size
Before choosing a location, confirm the compressor is sized for the work. Look at each air-operated tool's CFM requirement at its working PSI. Add the CFM of tools likely to run at the same time, then build in capacity for leaks, future bays, and the fact that published tool ratings do not always reflect hard shop use.
A single technician running an impact and filling tires has very different needs than a fleet maintenance operation with four bays. A two-stage stationary compressor with adequate tank storage is often the better fit for commercial repair work. If the unit will support blasting, painting, or continuous pneumatic equipment, consider a larger receiver tank, a dryer, and possibly a dedicated compressor circuit for high-demand operations.
Do not size the electrical service from horsepower alone. Check the compressor nameplate for voltage, phase, full-load amperage, and manufacturer-required overcurrent protection. Three-phase equipment may make sense in a larger shop, but only when the building service supports it. A compressor that starts hard, trips breakers, or runs continuously will not support uptime.
Pick the Right Installation Location
A stationary air compressor needs a clean, ventilated area with service clearance. Keep it away from welding dust, grinding debris, paint overspray, and direct washdown areas. Dust clogs intake filters and coats cooling surfaces. Heat shortens pump and motor life, especially when the compressor is already working through a long summer day.
Leave enough room to remove filters, check belts, drain the tank, and service the pump without moving other shop equipment. Follow the manufacturer's clearance requirements. If the compressor is installed in a dedicated room, provide enough intake and exhaust ventilation to keep the room temperature under control. A closed room can turn a properly sized compressor into an overheated, short-cycling problem.
The floor must be level and able to carry the loaded weight of the compressor and receiver. Concrete is the standard. Use vibration isolation pads or mounts where recommended, especially in shops where noise transfer to office space or neighboring work areas is an issue. Anchor the unit if the manufacturer or local code requires it.
Avoid installing a compressor where it will pull outside air loaded with road salt, diesel exhaust, moisture, or dirt. The intake air becomes the air your tools, valves, and dryer must deal with later.
Keep Service Access in the Plan
Do not back the compressor into a corner because it looks tidy on day one. You will need to change oil, inspect belts or couplings, clean coolers, replace intake filters, and reach the drain. A little access space prevents a lot of unnecessary downtime.
Electrical Setup Is Not a Guessing Game
A hardwired stationary compressor should be installed on a dedicated circuit with the correct disconnect, wire size, breaker or fuse protection, and grounding. Electrical work must meet local code and the compressor manufacturer's specifications. Use a qualified electrician for the final connection, particularly with three-phase power, high-amperage single-phase equipment, or a new service run.
The disconnect should be accessible and clearly marked. Do not bury it behind shelving or put it where a technician cannot reach it in an emergency. Confirm the pressure switch and magnetic starter are set up for the available voltage. On three-phase units, check motor rotation before allowing the compressor to run under load. Incorrect rotation can damage a pump quickly.
Voltage drop matters on long runs. An undersized conductor can cause poor starting, excess heat, and motor damage. This is one area where cutting material cost can create a repeat failure that is far more expensive than the correct install.
How to Install Air Compressor Piping for a Working Shop
The compressor is only half the system. Poor piping can waste capacity through pressure drop, leaks, and water contamination. Use pipe rated for compressed air and install it according to its pressure and temperature limits. Never use PVC for compressed air piping. PVC can shatter violently if it fails.
For a diesel repair facility, route a main line around the work area with drops at each bay rather than feeding every outlet from one long dead-end run. A looped layout helps maintain pressure when several tools are operating. Size the main line for current demand and reasonable expansion. Smaller pipe may look cheaper, but restricted flow makes a good compressor perform like an undersized one.
Run horizontal lines with a slight slope so condensation moves toward drain points. Take branch drops from the top of the main line, not the bottom. This reduces the amount of water that travels directly into a hose connection. At the bottom of each drop, install a drip leg with a drain before the outlet. Put the regulated outlet above that drip leg.
Use flexible, vibration-rated connectors between the compressor and fixed piping. Rigid pipe connected directly to a vibrating compressor can fatigue fittings and create leaks. Install an isolation valve near the compressor so the shop air system can stay pressurized when the unit needs service.
Control Moisture Before It Reaches the Bay
Compressed air naturally carries moisture, and a receiver tank is not a complete moisture-control system. At minimum, drain the tank regularly or fit an automatic drain. For tire work and general service, a properly placed particulate filter and water separator are a strong baseline.
If the shop paints, runs sensitive pneumatic controls, or operates equipment that cannot tolerate moisture, add a refrigerated dryer or a dryer suited to the required dew point. Place filtration and drying equipment where it can be serviced, and follow the required flow direction. A clogged filter or neglected dryer can create pressure loss across the entire system.
Complete a Safe Startup Check
Before the first run, inspect every fitting, drain, hose connection, and isolation valve. Confirm the pressure relief valve is installed, unobstructed, and rated for the system. Do not substitute fittings, modify the safety valve, or set the pressure switch above the receiver tank's rated working pressure.
Start the compressor with the outlet valve closed if the manufacturer calls for that procedure. Let it build pressure, then check cut-in and cut-out operation. Listen for air leaks around fittings, tank drains, and couplers. A soap-and-water solution can expose small leaks that are hard to hear in a busy shop.
After the system is running, test pressure at the farthest outlet while a high-demand tool is operating. If pressure falls sharply compared with the compressor outlet, look for undersized piping, restrictive filters, partially closed valves, or excessive leaks. Correct the cause rather than turning up the pressure switch.
Build Maintenance Into the Installation
The best installation makes routine maintenance easy enough that it actually gets done. Establish a schedule for tank draining, filter inspection, oil checks on lubricated pumps, belt inspection, cooler cleaning, and leak checks. Record service dates and hours if the compressor supports several technicians or multiple shifts.
Watch compressor run time. A unit that runs nearly nonstop may be undersized, leaking heavily, or feeding demand that was not included in the original plan. On the other hand, a massive compressor serving light demand can short-cycle unless storage and controls are set up correctly. The right answer depends on the shop's air load, operating hours, and planned growth.
A properly installed air system keeps repair work moving instead of becoming another job on the schedule. Size it for real truck-shop demand, pipe it for dry, stable pressure, and leave room to service it. That gives your technicians the air they need when the truck is in the bay and the clock is running.
