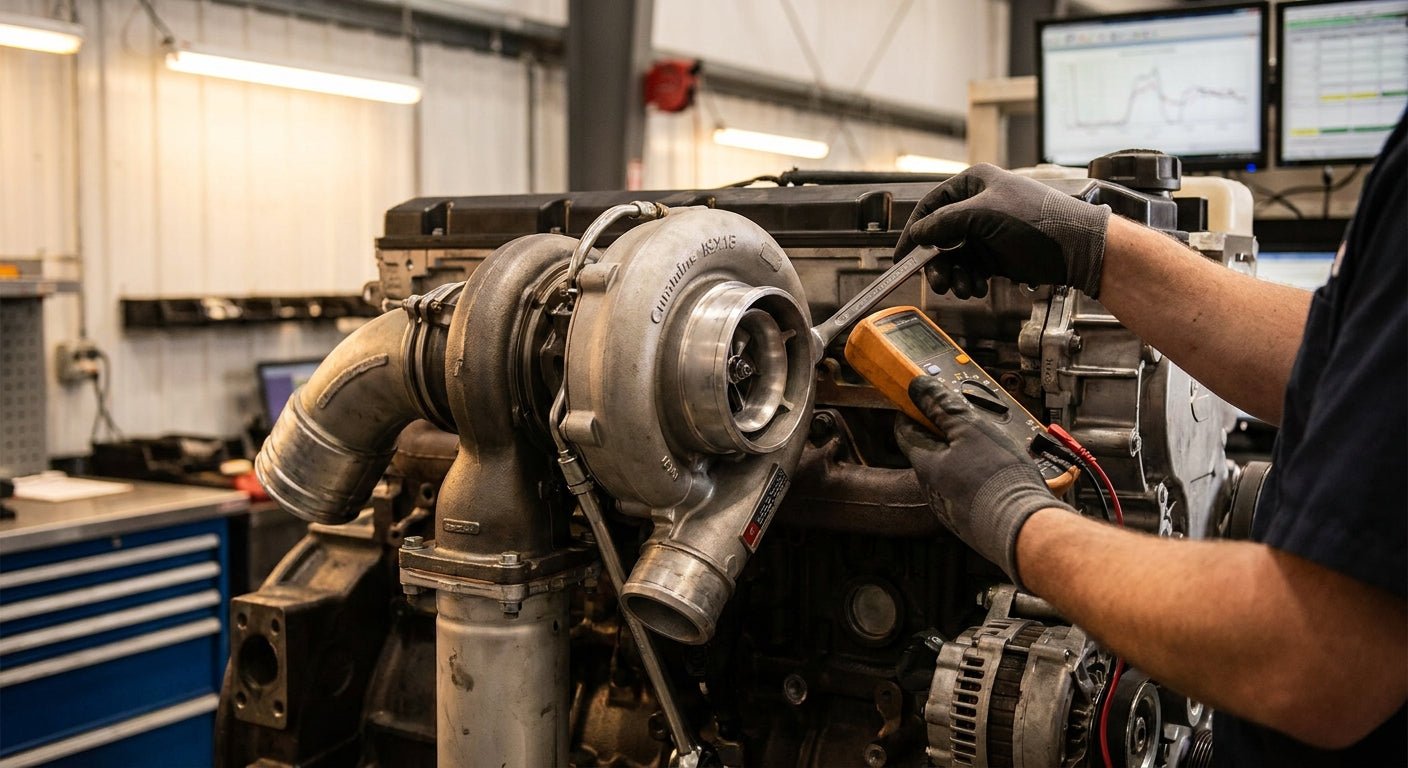

Cummins ISX15 Turbo Failure Troubleshooting 2026
A Cummins ISX15 turbo failure rarely happens without warning signs, and catching them early is the difference between a $1,200 turbo job and a $9,000 engine rebuild.
TL;DR: How to troubleshoot a Cummins ISX15 turbo failure starts with pulling fault codes in the SPN 1188 and SPN 4364 range, then checking boost pressure, VGT actuator movement, and oil supply lines before you touch anything else. Black smoke on acceleration plus a whining turbo usually points to worn bearings or a stuck VGT vane — replace the turbo now, don't wait. If oil shows up in the intercooler piping, the engine itself may already be compromised, and a running, tested 2015 Cummins ISX15 becomes the more sensible fix than chasing a third turbo in two years.
Why this matters
The ISX15's Holset VGT turbo runs variable geometry vanes controlled by an electronic actuator, and that actuator talks constantly to the ECM. When it sticks, drifts out of calibration, or the vanes carbon up, the truck loses boost, throws codes, and starts burning fuel it isn't converting into power.
Ignore it and you're not just replacing a turbo — you're often looking at oil-starved bearings that scored the shaft, or worse, debris that made it past the compressor wheel and into the intake tract. Diesel Engine King sees this pattern constantly on trade-in ISX15 cores: a $400 actuator problem left alone for three months turns into a full turbo swap, and sometimes a cylinder liner inspection on top of it.
Trucking companies running ISX15s built between 2010 and 2018 are hitting this failure point hardest in 2026, simply because those units are aging past 500,000 miles and the VGT actuators are original equipment.
What you'll need
- A heavy-duty scan tool that reads Cummins SPN/FMI codes (INSITE or equivalent)
- A mechanical or digital boost gauge
- A dial indicator or feeler gauge for shaft play
- Clean shop rags and a flashlight for the intercooler piping
- Shop manual or wiring diagram for the VGT actuator circuit
- 30-60 minutes for a full diagnostic pass, longer if you're pulling the turbo
The steps
1. Pull fault codes before you touch anything
Connect the scan tool and record every active and inactive code, not just the ones flashing the check-engine light. SPN 1188 (turbocharger speed) and SPN 4364 (boost pressure) are the two you're hunting for on an ISX15 turbo complaint.
Codes stacked with a VGT actuator fault (often paired with an SPN in the 686x-687x range depending on ECM calibration) point straight at the actuator rather than the turbo itself. Write down the code count and timestamp — a single recent code means early failure, a code that's been active for weeks means the truck's been running degraded for a while.
Common mistake: clearing the codes before recording them. You lose the freeze-frame data that tells you engine load and RPM at the moment of failure.
2. Check boost pressure at idle and under load
Tap into the intake manifold with your boost gauge and compare readings at idle, at 1,200 RPM, and under a road test load if possible. A healthy ISX15 should build boost smoothly without hesitation or a delayed spike.
Sluggish boost buildup with no leak found downstream usually means the VGT vanes are stuck partially closed from carbon buildup. A sudden boost spike followed by a drop points to vanes sticking open, then slamming shut.
Common mistake: testing boost with a loose or leaking connection at the gauge fitting itself, which reads as a turbo fault when it's actually a bad seal on your test equipment.
3. Inspect the VGT actuator and linkage
Locate the actuator on the turbo housing and manually work the linkage arm with the engine off. It should move smoothly through its full range with even resistance — no binding, no grinding, no dead spots.
A gritty or notchy feel means carbon has built up around the unison ring inside the housing. This is the single most common ISX15 turbo complaint on trucks over 400,000 miles, and it's often mistaken for a full turbo failure when a cleaning and recalibration would have fixed it.
Common mistake: skipping this check because the actuator looks fine from the outside. The failure is almost always internal to the housing, not visible externally.
4. Listen and feel for shaft play
With the engine off and cool, grab the compressor wheel through the intake horn and check for axial and radial play. Any noticeable wobble or in-and-out movement means the bearings are shot — this turbo is done, full stop.
Spin the wheel by hand and listen for grinding or scraping. A smooth, free spin with no metal-on-metal contact is the only acceptable result.
Common mistake: confusing normal bearing clearance (a slight, even looseness) with actual bearing failure (a rough, uneven wobble). If you're not sure, have a shop check it before condemning a good turbo.
5. Check the oil feed and drain lines
A turbo bearing failure is almost always an oil supply problem first and a turbo problem second. Check the feed line for restriction, and pull the drain line to confirm oil isn't backing up into the turbo housing from a plugged return.
Low oil pressure at idle, contaminated oil, or a collapsed feed line will kill a brand-new turbo in under 10,000 miles. If you're replacing the turbo without fixing the oil supply issue, you'll be back here again in a few months.
6. Inspect the intercooler piping for oil
Pull the charge air cooler boot at the turbo outlet and check for oil residue. A light film is normal wear; pooled oil or oil actively blowing through the system means the turbo seals have failed and oil is being pushed into the intake.
This is also the point where you decide whether you're looking at a turbo-only repair or something bigger. Oil in the intercooler combined with blue-white smoke on startup can mean the failure has already reached the piston rings.
7. Decide: repair, replace, or reconsider the engine
If codes, boost, actuator movement, and bearing play all check out clean except for one isolated fault, you're looking at a turbo repair or actuator replacement — a same-day fix in most shops. If shaft play is present alongside oil in the intercooler, replace the turbo assembly outright rather than rebuilding it.
If the ISX15 has over 600,000 miles, multiple stacked codes, and this is the second turbo failure in under two years, run the numbers on a certified, run-tested replacement engine instead of pouring another $3,000-$5,000 into a unit that keeps failing. A 2016 Cummins ISX15 with verified compression and a clean ECM history often costs less over 12 months than repeated turbo repairs on a tired core.
Troubleshooting specific problems
- Whining noise under acceleration, no fault codes yet — early bearing wear. Schedule the turbo swap within 1,000-2,000 miles before it fails completely on the road.
- Black smoke plus loss of power above 1,500 RPM — check for a stuck VGT vane in the closed position; clean and recalibrate before condemning the turbo.
- White smoke at startup only — oil pooling in the turbo overnight from a failing seal; confirm with the intercooler check in Step 6.
- Boost fluctuates wildly at steady RPM — actuator calibration is off or the wiring harness has an intermittent connection; check the connector pins before replacing parts.
- Engine derates itself under load — the ECM has detected a boost or speed fault and pulled power to protect the engine; pull codes immediately, this isn't a keep-driving situation.
- Turbo replaced but same codes return within a week — the oil supply problem from Step 5 was never fixed; a new turbo on a dirty or restricted feed line fails just as fast as the old one.
Tools and resources
- Cummins-compatible scan tool for SPN/FMI code reads
- A verified, tested replacement Cummins ISX15 ECM if the actuator fault traces back to a control module issue rather than the turbo hardware itself
- Shop reference on turbochargers for Cummins ISX15 engines for part-number cross-referencing
- A dial indicator for shaft play measurement
- Clean intake and drain line fittings on hand before you start, since most techs end up replacing at least one during this process
What to do next
If the diagnostic points to the ECM rather than the turbo hardware, don't guess — the symptoms overlap more than most shops admit. Read through the full breakdown on how to diagnose a failing diesel engine ECM before you order a turbo you didn't need in 2026.
FAQ
What's the most common cause of Cummins ISX15 turbo failure? Carbon buildup around the VGT actuator linkage and unison ring is the most common cause, followed closely by oil supply restriction that starves the bearings. Both show up as boost and speed fault codes before the turbo fully fails.
Is it cheaper to repair or replace an ISX15 turbo? Repairing an actuator issue alone typically runs a fraction of a full turbo replacement, but if bearing play or oil contamination is present, replacement is the only real fix. Repairing a worn turbo without addressing bearing wear just delays a second failure.
How much boost should a healthy ISX15 build? A properly functioning ISX15 builds boost smoothly across the RPM range without hesitation or spikes; exact PSI varies by tune and altitude, so compare against your truck's baseline rather than a fixed number.
Can a bad ECM cause turbo-like symptoms on an ISX15? Yes — a failing ECM can misread actuator position sensors and command incorrect vane positions, mimicking a mechanical turbo fault. Testing the actuator manually in Step 3 rules this out before you spend money on turbo parts.
How many miles does a Cummins ISX15 turbo typically last? Most ISX15 turbos run 400,000 to 600,000 miles under normal fleet duty before actuator or bearing issues show up, though oil maintenance history changes that range significantly.
Should I rebuild or replace an ISX15 engine after a second turbo failure? A second turbo failure within two years on an engine past 600,000 miles is usually a sign of an underlying oil or wear issue, and a certified, run-tested replacement engine often makes more financial sense than chasing another repair in 2026.
What fault codes indicate ISX15 turbo trouble? SPN 1188 (turbo speed) and SPN 4364 (boost pressure) are the primary codes tied to turbo performance issues on the ISX15, often paired with an actuator-circuit fault when the VGT system is involved.
Does oil in the intercooler always mean the turbo failed? Not always, but it's the clearest sign the turbo seals have given out and oil is passing into the intake system. Combined with shaft play from Step 4, it confirms turbo replacement is needed rather than a simple actuator fix.
One last thing
The actuator calibration reset that most shops skip — a five-minute relearn procedure after any actuator service — is the single most overlooked step in ISX15 turbo troubleshooting, and skipping it causes a fresh set of boost codes to reappear within days even on a correctly repaired turbo.
