How to Test a Diesel Engine Fuel Injector (2026 Guide)
Testing a diesel engine fuel injector before you condemn it saves a tow bill and a guessing game — resistance checks, spray pattern tests, and a scan-tool balance test tell you in under an hour whether the injector or something upstream is the real problem.
TL;DR
How to test a diesel engine fuel injector comes down to three checks: electrical resistance with a multimeter, spray pattern and pop pressure on a bench tester, and a cylinder balance test with a scan tool while the engine idles. A Cummins ISX15 or Detroit DD15 injector reading outside 0.5 to 2.0 ohms is bad. Verdict: test before you replace — a $40 multimeter check and a $150 bench test beat swapping a $600 injector on a hunch in 2026.
Why this matters
A misfiring injector on a Class 8 truck doesn't always throw a clean fault code. Fuel trim tables on Cummins, Detroit, and Volvo ECMs compensate for weak cylinders long before the dash lights up, which means the truck runs rough, burns more fuel, and smokes before anyone gets a real diagnostic trouble code.
Shops in 2026 are still replacing injectors on symptoms alone — rough idle, white smoke, a fuel smell — and eating the cost when the actual fault was a clogged filter or a bad Cummins ISX15 fuel injector wiring harness instead. A 30-minute resistance and balance test narrows that down before parts get ordered.
What you'll need
- Digital multimeter with ohms setting
- Manufacturer resistance spec sheet for your engine (Cummins ISX15, Detroit DD15, Volvo D13, Paccar MX-13, or CAT C15)
- Diesel-rated injector bench tester or pop tester (shop tool, not DIY)
- Laptop with OEM or aftermarket diagnostic software (INSITE, DDDL, or equivalent)
- Clean shop rags and a drain pan for fuel return testing
- Torque wrench for injector hold-down bolts
- A running engine, or a spare like the 2016 Cummins ISX15 if you're testing a pulled unit before reinstall
The steps
1. Pull the injector connector and check resistance

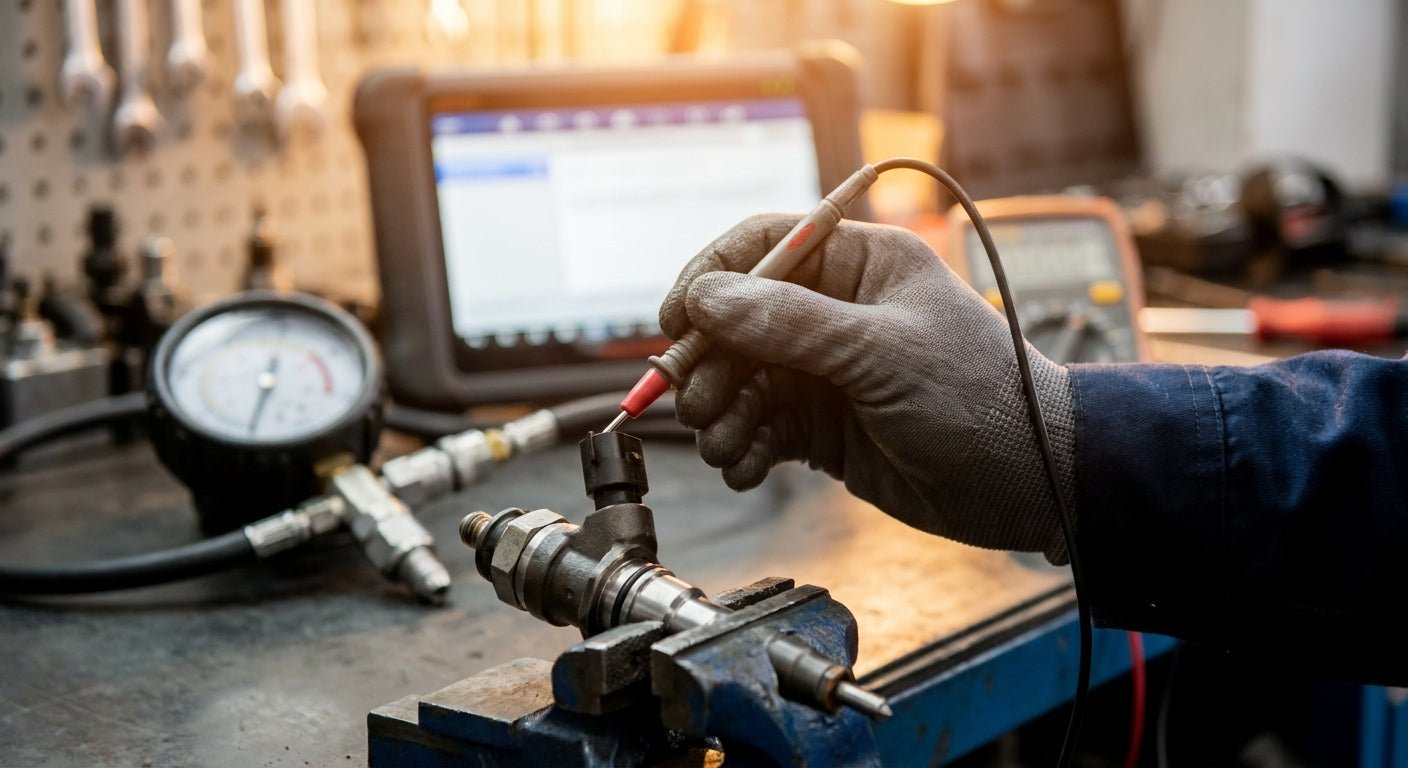

Disconnect the injector wiring harness and set your multimeter to ohms. Touch the leads to the two injector terminals and read the value. Most common-rail diesel injectors — Cummins ISX15, Detroit DD15, Volvo D13 — spec between 0.5 and 2.0 ohms depending on the solenoid design; check your engine's service manual for the exact number.
Expected outcome: a steady reading within spec on both terminals. Common mistake: testing with the harness still connected, which reads the whole circuit instead of the injector itself and masks a bad injector behind a good wire.
2. Check for infinite resistance or a short
An open circuit (infinite resistance, no reading) means a burnt-out solenoid coil. A reading near zero ohms means a shorted coil. Both conditions mean the injector is done — no amount of cleaning fixes a shorted solenoid.
This step alone catches roughly a third of bad injectors pulled off Class 8 engines, since electrical failure is more common than mechanical wear on newer common-rail units built after 2013.
3. Bench-test spray pattern and pop pressure
Mount the injector on a bench tester and cycle it by hand or with the tester's pump. Watch the spray pattern through the sight glass — it should be a fine, even cone, not a stream or a lopsided fan.
For older mechanical injectors (pre-2010 Cummins and CAT units), pop pressure typically falls between 4,000 and 5,000 PSI. A pop pressure more than 300 PSI below spec means a worn nozzle or weak spring, and the injector should be rebuilt or replaced.
4. Run a return flow test
With the injector connected to a fuel return line and the engine idling, measure how much fuel returns per minute. A healthy modern common-rail injector on a Detroit DD15 or Cummins ISX15 returns roughly 200 to 300 mL per minute at idle.
An injector returning double that volume has a worn control valve and is leaking fuel internally instead of atomizing it — that's lost fuel economy even if the engine seems to run fine.
5. Run a cylinder balance test with a scan tool
Connect your diagnostic laptop and pull up the cylinder balance or power balance test. The ECM cuts fuel to one cylinder at a time and measures the RPM drop — a healthy cylinder typically drops 25 to 50 RPM when cut, and all cylinders should drop within a tight range of each other.
A cylinder that barely changes RPM when cut, or drops far less than the others, points straight at a weak or dead injector on that cylinder. This test works on a running engine without pulling anything apart, which makes it the fastest first diagnostic step in 2026-era shops.
6. Check fuel correction values on the scan tool
Most 2026-model diagnostic software displays a fuel correction or trim value per cylinder. A cylinder correction beyond plus or minus 3 mm³ per stroke compared to the others usually confirms an injector problem the balance test already flagged.
Common mistake: stopping at the balance test alone. Pair it with the correction values to confirm the injector, not the fuel supply, is at fault.
7. Torque the injector back down to spec
If the injector passes and goes back in, torque the hold-down clamp or bolt to the exact factory spec — overtightening cracks the injector body, undertightening causes a fuel leak at idle. Specs vary by engine family, so check the service manual rather than guessing.
Expected outcome: no fuel weeping at the injector base after a 10-minute idle test post-install.
Troubleshooting
- Injector reads good resistance but engine still misfires on that cylinder — check the wiring harness and connector pins for corrosion before condemning the ECM or diagnosing a failing diesel engine ECM.
- Spray pattern looks fine but pop pressure is low — the nozzle spring has fatigued; rebuild or replace rather than reinstall.
- Return flow is high on every cylinder, not just one — this points to a fuel pressure regulator issue, not a bad injector batch.
- Balance test shows one cylinder way off but resistance and bench test both pass — check compression on that cylinder before blaming the injector again.
- Fuel smell after reinstall with no visible leak — recheck injector torque; a slightly loose hold-down bolt won't always show a drip immediately.
- Multimeter reads erratic or fluctuating resistance — the harness connector is corroded, not the injector coil; clean and retest before replacing anything.
Tools and resources
- Digital multimeter (any automotive-rated model works)
- Injector bench tester, available through most diesel parts suppliers
- OEM diagnostic software matched to your engine brand
- Diesel Engine King inventory of tested engines if the block itself needs replacing after injector failure damages a cylinder
- Service manual torque specs for your specific engine family
What to do next
If the balance test and correction values point to the ECM instead of a single injector, stop chasing injectors and read how to diagnose Detroit Diesel ECM fault codes before pulling anything else apart. A bad ECM output driver mimics a bad injector on a scan tool, and no amount of injector swapping fixes that.
FAQ
What's the best way to test a diesel engine fuel injector without pulling it out? Run a cylinder balance test with a scan tool while the engine idles — it cuts fuel to each cylinder and measures the RPM drop, flagging a weak injector without removing anything.
Is a resistance test enough to confirm a bad injector? No. Resistance testing catches electrical failures like a shorted or open coil, but a mechanically worn nozzle can read perfect resistance and still spray a bad pattern, so pair it with a bench test.
How much does it cost to test a diesel fuel injector in 2026? A shop bench test typically runs $50 to $150 per injector depending on the engine, far less than replacing a $400 to $800 common-rail injector on a guess.
What resistance should a Cummins ISX15 injector read? Most Cummins ISX15 injectors read between 0.5 and 2.0 ohms; confirm the exact figure against the current service manual since spec varies by injector generation.
Can a bad injector damage the engine if left untested? Yes. A leaking or misfiring injector can wash cylinder walls with raw fuel, dilute engine oil, and eventually damage a piston or liner if it runs unchecked for weeks.
How do I know if it's the injector or the ECM causing a misfire? Run both a resistance test on the injector and a fault code scan on the ECM; if the injector passes every mechanical and electrical test but the misfire persists, the ECM or wiring harness is the next suspect.
What's a normal return flow rate for a diesel injector? Roughly 200 to 300 mL per minute at idle on a healthy common-rail injector; double that suggests internal leakage.
Should I test all injectors at once or one at a time? Test all of them in the same session using the balance test, since comparing cylinders against each other is what reveals which one is actually weak.
One last thing
Most shops skip the return flow test because it takes an extra 15 minutes, but it's the one check that catches an injector that passes resistance and even looks fine on the bench yet still bleeds fuel economy at idle — on a truck running 100,000 miles a year, that's real money by the end of 2026.
