How to Install a PTO on a Diesel Truck (2026 Guide)

Installing a power take-off (PTO) on a diesel truck transmission runs you $600-$1,800 in parts and 3-5 hours of shop time when the transmission already has PTO provision cut into the case — skip the guesswork and confirm your aperture and gear ratio before you buy anything.

Why this matters

A PTO turns your transmission into a power source for a hydraulic pump, winch, dump body, or auxiliary equipment run off the truck's engine instead of a separate motor. Get the mount wrong and you're pulling the unit back off within a week — stripped bolts, gear whine, or a PTO that won't engage under load.

Most failures trace back to skipping the aperture check. Diesel Engine King sells transmissions like the 10-speed Eaton Fuller FRO16210C transmission with PTO openings already machined into the case, which cuts install time roughly in half compared to retrofitting a unit that wasn't spec'd for one. In 2026, fleets running dump trucks, tankers, and utility rigs still lead the pack in PTO retrofit demand, and the install mistakes haven't changed much in a decade.

What you'll need

• PTO unit matched to your transmission's aperture — SAE 6-bolt round or 8-bolt oval, confirmed against your transmission model number
• Mounting gasket or O-ring kit — do not reuse an old gasket, it's the top cause of PTO oil leaks
• Torque wrench rated to at least 100 ft-lbs
• PTO shift cable or air/electric solenoid kit, depending on whether your setup is cable-shifted or air-shifted
• Transmission fluid matched to spec — top off after install since PTO cavity fill displaces some volume
• Basic hand tools: ratchet set, pry bar, torque wrench, thread sealant
• A transmission with PTO provision already cast in — units like the Eaton Fuller FRO-16210C come with the aperture ready, which saves a machine shop visit
• 2-3 hours of clear shop time if this is your first install; experienced techs run it in under 90 minutes

The steps

Step 1: Confirm the PTO aperture before you buy

Pull the cover plate off the transmission's PTO opening and measure the bolt pattern — 6-bolt round openings and 8-bolt oval openings are not interchangeable, and mixing them up is the single most common return reason on PTO orders. Check your transmission's spec sheet or model tag against the PTO manufacturer's fitment chart. Manual boxes like the Eaton Fuller line are the easiest match since the aperture pattern is standardized across most 10-speed and 13-speed models built since the early 2010s.

Common mistake: ordering a PTO based on truck make instead of transmission model — two trucks with the same badge can carry different transmission cases.

Step 2: Drain the transmission fluid

Position a drain pan under the transmission and remove the drain plug, letting the fluid fully empty before you touch the PTO cover. Skipping this step means fluid dumps out the moment you crack the cover bolts, and it usually ends up on the shop floor and on you. Let it drain a full 10-15 minutes — diesel gear oil is thick and takes longer than engine oil to clear.

Step 3: Remove the PTO cover plate

With the fluid drained, back out the cover bolts in a star pattern to avoid warping the plate, then pry it free with a flat bar if the gasket has bonded to the case. Inspect the internal gear teeth on the transmission's PTO drive gear for wear or chipping — a worn drive gear is a sign the transmission has seen hard use and may need attention before the PTO goes on.

Common mistake: forcing the cover with a screwdriver and gouging the mating surface, which creates a leak path no gasket will seal.

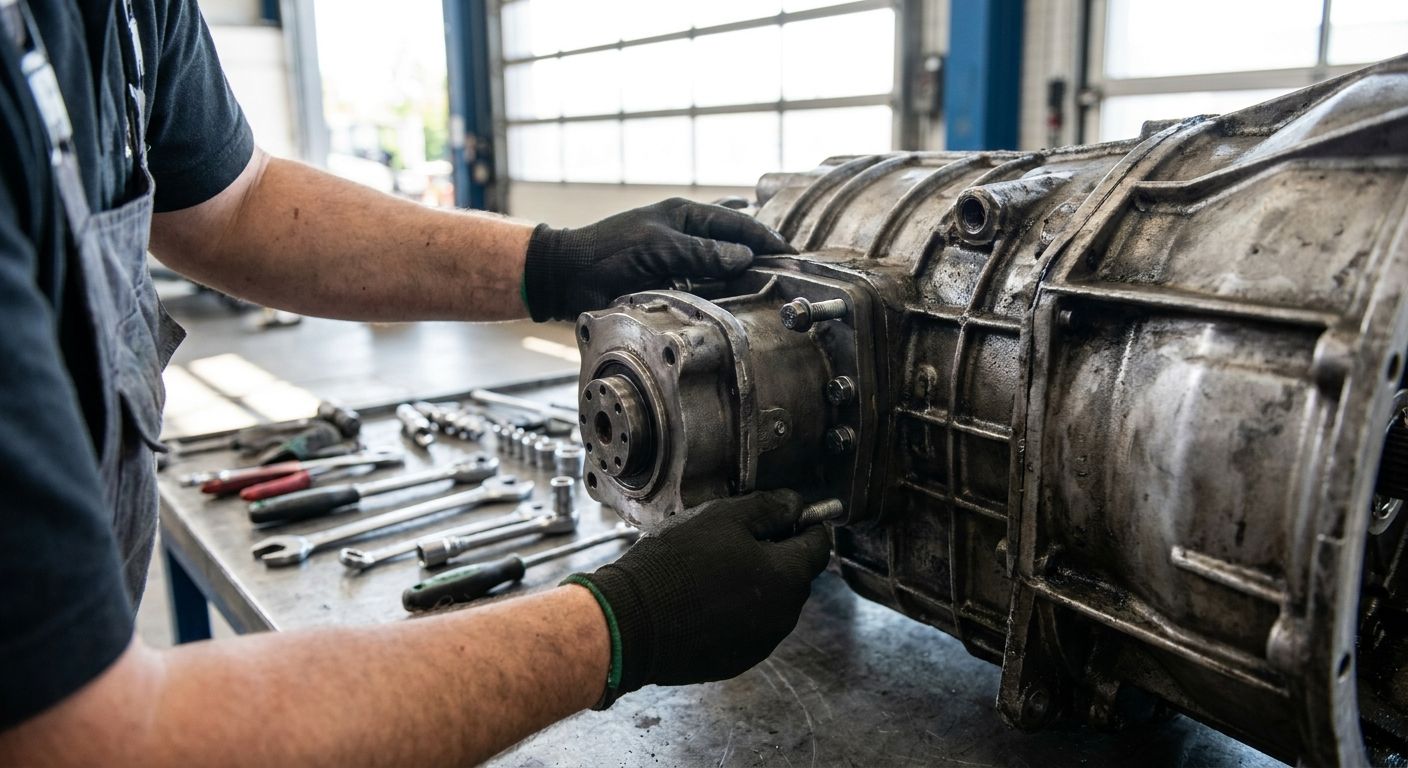

Step 4: Mount the PTO unit and torque to spec

Set the new gasket in place dry (no sealant unless the manufacturer specifies it), align the PTO housing over the studs, and hand-thread the bolts before torquing. Torque in a star pattern to the manufacturer's spec — most PTOs call for 35-55 ft-lbs, but always check the unit's install sheet since specs vary by model and thread size. Under-torqued bolts back out under vibration within a few hundred miles; over-torqued bolts crack the housing.

Step 5: Connect the shift mechanism

Run the shift cable or air line from the cab-mounted control to the PTO's engagement fork, keeping the routing clear of the driveline and exhaust heat. Air-shifted PTOs need a clean line from the truck's air system with a dedicated solenoid; cable-shifted units need free movement with no binding at full engagement and full disengagement. Test the shift throw by hand before you ever start the engine.

Common mistake: routing the shift cable too close to the exhaust, which melts the sheath and seizes the mechanism within a season.

Step 6: Refill fluid and check the level

Refill the transmission with fluid matched to the OEM spec, accounting for the extra volume the PTO cavity now occupies — this typically adds a small amount to the total fill compared to a transmission without a PTO. Check the level with the truck on level ground and the engine off, then recheck after a short test drive once fluid has circulated. Low fluid is the fastest way to cook a freshly-installed PTO gear set.

Step 7: Test engagement under load

Start the engine, engage the PTO with the truck stationary and the parking brake set, and listen for smooth engagement without grinding. Bring the accessory (pump, winch, or hydraulic circuit) online at idle first, then bring the engine to working RPM and confirm the PTO holds torque without slipping or disengaging. If it's an automated transmission like the Detroit DT-12, confirm the ECM has been reprogrammed to recognize the PTO input — automated boxes won't engage a PTO circuit the software doesn't know exists.

Troubleshooting

• PTO won't engage at all — check for a blown fuse or disconnected solenoid on air/electric shift units before assuming a mechanical fault.
• Grinding noise on engagement — the PTO gear and transmission drive gear aren't meshing cleanly; recheck alignment and gear backlash.
• Fluid leaking from the PTO cover — almost always a reused gasket or under-torqued bolt; replace the gasket and retorque to spec.
• PTO engages but loses power under load — clutch pack inside the PTO may be worn or the shift fork isn't fully seating; inspect the clutch engagement.
• Automated transmission won't recognize the PTO — the ECM needs reprogramming for the auxiliary output; this is common on units like the DT-12 and requires a dealer-level scan tool.
• Excessive vibration after install — check that all mounting bolts hit the torque spec; a single loose bolt throws off the whole housing.

Tools and resources

If your transmission doesn't already have PTO provision, retrofitting the case isn't a shop-floor job — you're better off sourcing a used unit built for it. The Detroit DT-12 automated transmission and the Eaton Fuller FRO-16210C both show up regularly in Diesel Engine King's inventory with PTO apertures intact, which saves the machine shop step entirely. Keep a torque wrench, gasket kit, and the transmission's specific PTO fitment chart on hand before you start — guessing on bolt pattern or torque spec is how comebacks happen.

What to do next

Once the PTO is torqued in and tested under load, log the install date and torque values in your maintenance file — it's the first thing a tech checks if the unit ever comes back with a complaint. If you're sourcing the transmission itself rather than retrofitting one already in the truck, confirm PTO provision on the spec sheet before you buy, not after it arrives on the truck.

FAQ

One last thing

The bolt pattern check in step 1 takes five minutes and prevents the return shipping headache that eats up more time than the entire install. Techs who skip it end up doing the job twice in 2026 just as often as they did a decade ago — the fitment charts haven't gotten any harder to read, people just skip them.
